Bailey Bridge Plate Roller

Short Description:


Product Detail

Product Tags

Product introduction

Bailey Bridge Plate Roller: used to bear the weight of the bridge and reduce the resistance when pushing out. After the introduction of shore rock, a group is set every 6 meters. Each flat rolling bearing weight is 60 kN.

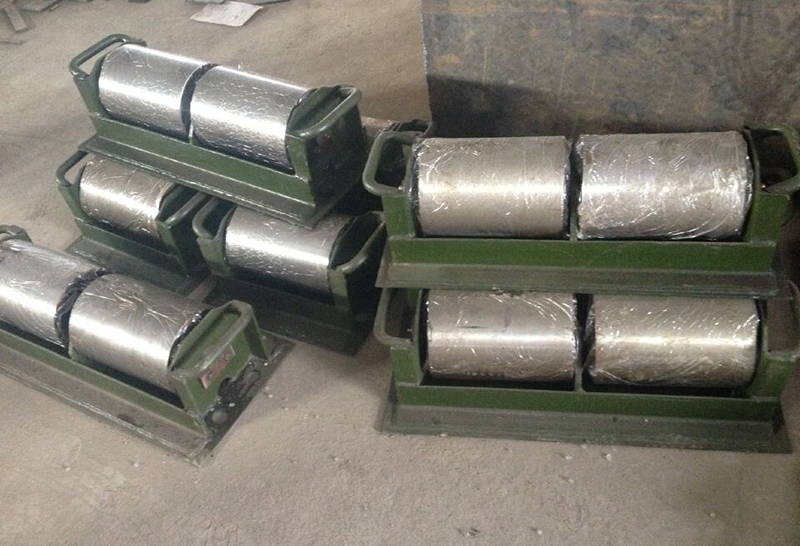

Bailey Bridge Plate Roller (1)

Specifications

1 To support Bailey decking System
2 Bailey chess and decking
3 Made of U-steel
4 Galvanize to protect the surface

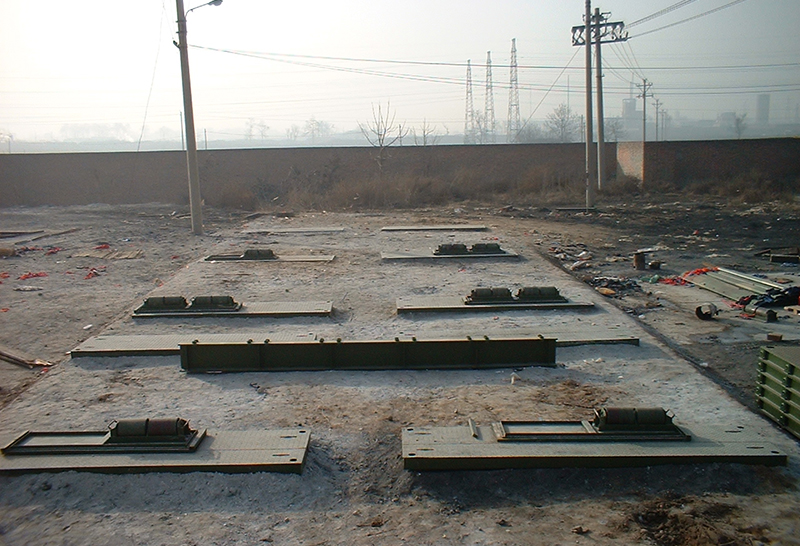

Bailey Bridge Plate Roller (2)

Detailed Description

Every quarter needs 15 truss, make both ends convex tenon, embedded within the longitudina Which has buckle buttons.
Compact 100: we always call it 990 steel deck, because the width is 990cm. And It can be divided into overweight and common. Overweight one must need thicker quality.
Compact 200: we always call it 1050 steel deck, the width is 1050cm.
The size and weight is different from compact 100 and 200.

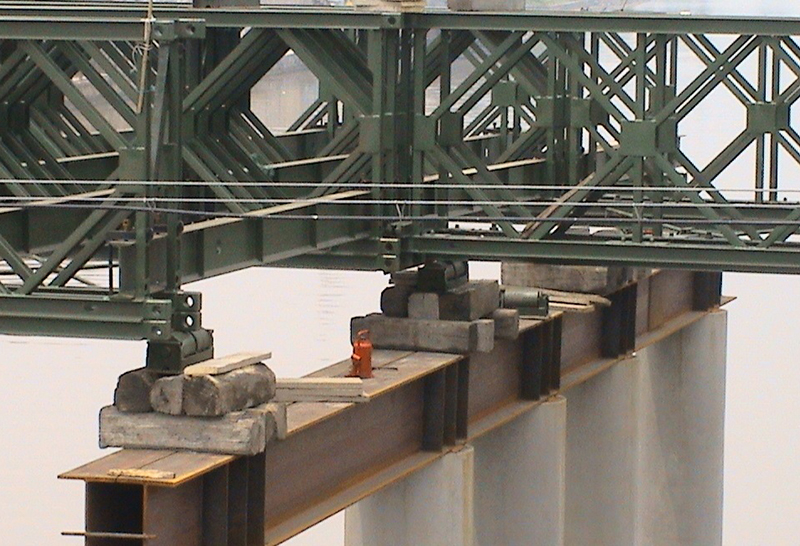

Bailey Bridge Plate Roller (3)
