product introduction

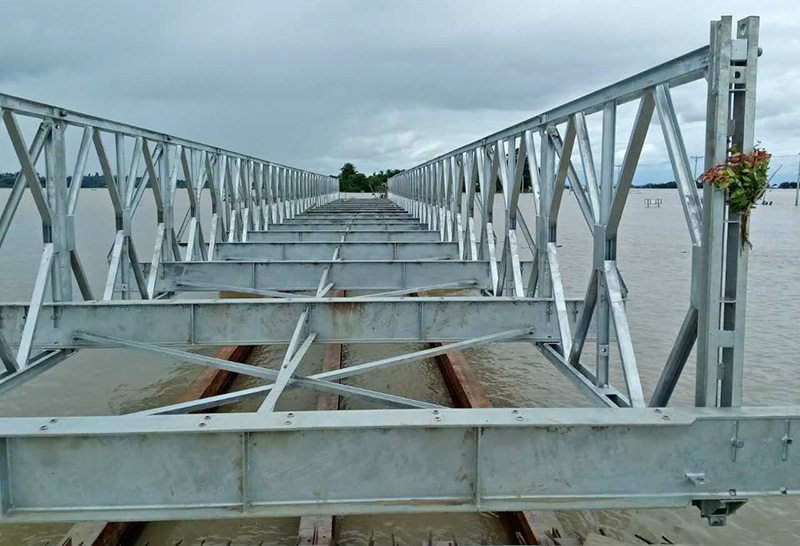

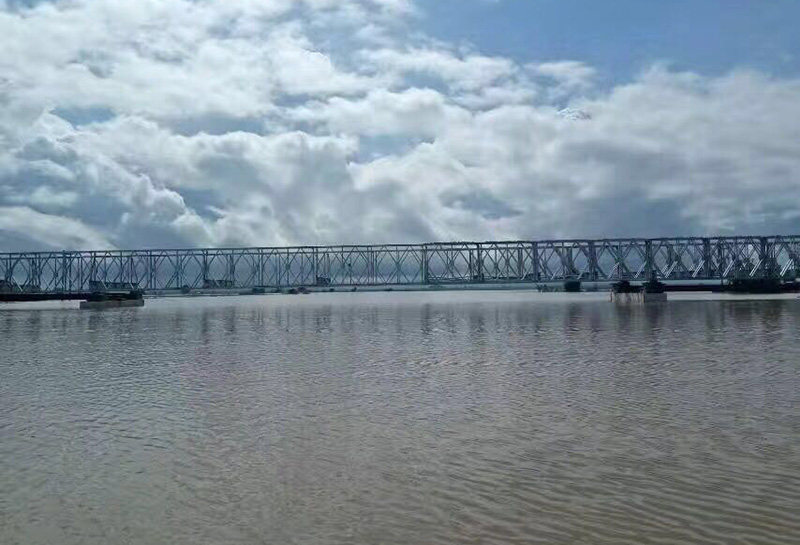

The Logistic Support Bridge (LSB) is similar to the HD200 bailey bridge and 321-Type panel bridge from their appearance. The difference is its increased panel height to 2.134m. For some bridge with longer spans, it employed the method of alternating joints between reinforcement chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree.
Bolt-connected components use the orienting sleeve-fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Sway Brace is made of integral type and connected with the transom to improve the overall stability of the assembled steel bridge. The part between braced frame and panels is fixed through bridging so as to prevent the whole bridge from side bending. After the erection, there will be a pre-arched degree over the span of the bridge. Besides it can be assembled into single-lane bridges. The Logistic Support Bridge (LSB) can also be assembled into double lane bridge, hence it broadens its application range. It is suitable for the load designs of HS-15, HS-20, HS-25, HL-93 and pedrail-50 etc.
Technical Specification
| Span | 30ft to 200ft (10ft increment) 9.144m up to 60.96m (3.048m increment) |
| Road Width | Single Lane - 4.2m (with additional component, the birdge can convert to Double Lane 7.35m Width) |
| Material Grade | Panel chord & transom Steel Grade S460 equivalent |
| Other parts Steel Grade S355 equivalent |
|
| Bolts, screws and nuts ISO compliance |
|
| Load Standard | Military Road: Up to MLC 80(Tracked) / MLC 110(Wheeled) |
| Civilian Road: HS25-44 HA/HB Loading |
|
| Corrison Protection | Hot DIP Galvanized: All structural components and parts comply to BS 1461 and BS1706 equivalent |
| Deck Surface | Raised Skid Resistant |
| Joint System | Pin & Bolt System |
