The completion of the Yuhuan Xuanmen Bay Bridge stands as a monumental achievement in modern Chinese coastal infrastructure, symbolizing the seamless merger of ambitious urban planning with cutting-edge engineering. At the heart of this achievement lies a critical component: the high-performance steel box girder that forms the bridge’s main deck. We chronicle the journey of this key element, from its fabrication by the skilled engineers of Zhenjiang Great Wall Heavy Industry Technology Co., Ltd. to its final placement as the backbone of the bridge. It provides a comprehensive examination of the steel box girder’s structural principles and advantages, elucidates the strategic reasons for its selection in the demanding marine environment of Xuanmen Bay, and explores the future trajectory of this technology. Finally, it aligns this progress with the forward-looking development vision of Zhenjiang Great Wall Heavy Industry, illustrating how such enterprises are pivotal to the future of global infrastructure.
1. The Artisan of Steel: Zhenjiang Great Wall Heavy Industry Technology Co., Ltd.
Nestled in the industrially robust city of Zhenjiang, Jiangsu Province, Zhenjiang Great Wall Heavy Industry Technology Co., Ltd. has established itself as a leading force in the Chinese heavy fabrication and steel structure industry. The company’s name, “Great Wall,” is not merely an identifier but a corporate philosophy—a commitment to building products with the resilience, reliability, and enduring strength of the iconic ancient structure.
With a foundation built on extensive engineering expertise, the company specializes in the design, fabrication, and construction support of large-scale steel structures. Its portfolio is diverse, encompassing industrial plants, mining equipment supports, and, most notably, advanced components for bridge engineering. The company’s manufacturing facilities are equipped with state-of-the-art CNC cutting systems, automated welding machinery, and large-capacity assembly bays, enabling the precise fabrication of massive steel elements.
Central to its success is an unwavering adherence to international quality management systems. Every project, from material procurement and cutting to welding, assembly, and non-destructive testing (NDT), is governed by a rigorous quality assurance protocol. It was this reputation for precision, reliability, and the ability to handle complex fabrication challenges that positioned Zhenjiang Great Wall Heavy Industry as the ideal supplier for the steel box girders of the Xuanmen Bay Bridge—a project where quality was non-negotiable.
2. The Backbone of Modern Spans: Demystifying the Steel Box Girder
A steel box girder is the quintessential structural element for modern long-span bridges. It is essentially a hollow, box-like beam fabricated from steel plates, but its simplicity in concept belies a highly sophisticated engineering reality. The girder is not a simple void; it is an orthotropic deck system, meaning it possesses different stiffness properties in longitudinal and transverse directions.
2.1 Structural Composition:
A typical steel box girder is composed of several key elements:
Deck Plate: The top plate, which serves as the direct roadway surface. It is typically overlaid with a specialized asphalt wearing course.
Bottom Plate: The lower flange that, together with the deck plate, resists global bending moments.
Web Plates: The vertical sides of the box that connect the top and bottom plates, primarily resisting shear forces.
Longitudinal Stiffeners (U-Ribs): These are U-shaped or flat steel sections continuously welded to the underside of the deck plate and the inside of the bottom plate. They are the cornerstone of the orthotropic design, preventing local buckling of the thin plates and distributing concentrated wheel loads along the bridge’s length.
Transverse Diaphragms/Cross-Frames: These are internal “ribs” spaced regularly along the girder’s length. They maintain the box’s geometric shape, provide support for the ends of the longitudinal stiffeners, and transfer loads between the main suspension cables or supports.
2.2 Key Advantages and Characteristics:
The widespread adoption of steel box girders is driven by a compelling set of advantages:
Exceptional Strength-to-Weight Ratio: The closed-box configuration places a maximum amount of material at the top and bottom, far from the neutral axis, resulting in a very high moment of inertia. This allows the girder to carry immense loads while keeping its self-weight low—a critical factor for long-span bridges where the weight of the deck dictates the size and cost of the supporting structure (cables, towers, and foundations).
Superior Torsional Stiffness: The hollow, tubular section offers immense resistance to twisting (torsion), which is crucial for maintaining stability under asymmetric traffic loads or strong, unpredictable crosswinds common in coastal and mountainous regions.
Outstanding Aerodynamic Performance: The streamlined, enclosed shape allows wind to flow smoothly around it, minimizing the formation of destructive vortices that can lead to aerodynamic instabilities like flutter. This was a key lesson learned from historical bridge failures and is now a primary design consideration.
Constructability: Large segments of the box girder can be prefabricated under controlled factory conditions, ensuring high quality. These segments can then be transported to the site and lifted into place, significantly accelerating the construction schedule compared to cast-in-place concrete alternatives.
2.3 Primary Application Fields:
Due to these properties, steel box girders are the dominant solution in:
Long-Span Suspension and Cable-Stayed Bridges: As the main stiffening girder (e.g., the Maputo-Katembe Bridge, Mozambique).
The Main Spans of Long Continuous Girder Bridges.
Curved Bridge Decks in Complex Interchanges, where high torsional stiffness is essential.
Bridge Projects requiring Rapid Construction with minimal disruption to the underlying area (e.g., over railways or busy highways).
3. The Project: Yuhuan Xuanmen Bay Bridge
The Xuanmen Bay Bridge is a majestic cable-stayed bridge that spans the Xuanmen Bay in Taizhou, Zhejiang Province, connecting the Yuhuan Peninsula to the mainland. Its construction was a pivotal infrastructure project aimed at ending the isolation of Yuhuan, transforming it from an island to an integral part of the regional economic belt, and catalyzing its economic development.
The bridge is a striking feature on the coastline, with its towering pylons and web of stay-cables supporting the graceful deck. It was designed to withstand the formidable environmental challenges of the East China Sea, including typhoons, high salinity, and potential seismic activity. The choice of the main deck structure was, therefore, a decision of paramount importance, one that would ultimately fall upon the steel box girder.
4. The Perfect Match: Why Steel Box Girder was Chosen for Xuanmen Bay Bridge
The selection of a steel box girder for the Xuanmen Bay Bridge was not a matter of chance but a calculated engineering decision driven by the project’s specific demands.
4.1 Meeting the Demand for a Long Main Span:
The bridge required a central span long enough to provide ample navigational clearance for vessels in the bay. A concrete girder of equivalent span would have been prohibitively heavy, requiring massive, expensive supporting pylons and foundations. The lightweight nature of the steel box girder was the most efficient and economically viable solution to achieve the desired span without compromising structural integrity.
4.2 Defying the Typhoon: Aerodynamic Stability:
The Zhejiang coast is frequently subjected to powerful typhoons. The streamlined closed section of the steel box girder was fundamentally chosen for its superior aerodynamic performance. Its shape minimizes wind drag and, more importantly, disrupts the synchronized vortex shedding that can lead to dangerous oscillations. This inherent stability ensures the safety and serviceability of the bridge even under extreme wind conditions, guaranteeing that the vital transport link remains secure.
4.3 Resisting the Marine Environment:
The marine atmosphere is highly corrosive due to salt spray and high humidity. While this is a challenge for any steel structure, modern engineering provides robust solutions. The steel box girders supplied by Zhenjiang Great Wall Heavy Industry were fabricated with a high-performance corrosion protection system. This typically involves a multi-layer coating: a metallized zinc or aluminum layer for sacrificial protection, sealed with an epoxy primer, followed by an epoxy intermediate coat, and finished with a durable polyurethane topcoat resistant to UV radiation. Furthermore, the enclosed nature of the box girder allows for the installation of a dehumidification system, which pumps dry air into the void to prevent condensation and internal corrosion, ensuring a lifespan exceeding 100 years.
4.4 Accelerated and Precision Construction:

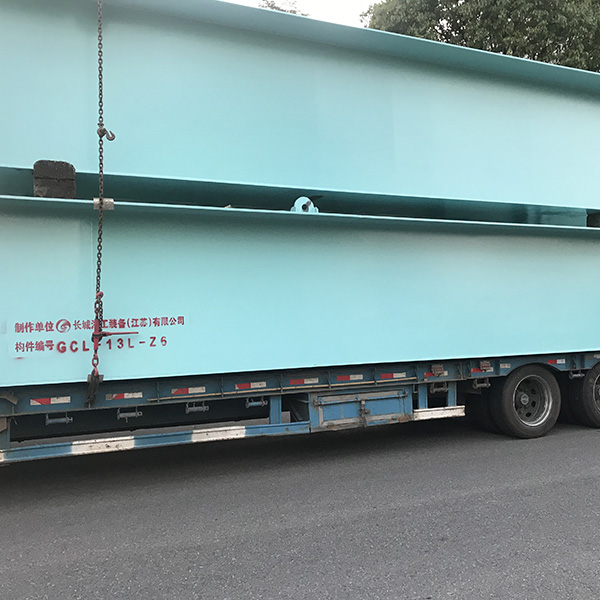

The ability of Zhenjiang Great Wall Heavy Industry to fabricate large, complex segments of the box girder in their factory was a significant advantage. This off-site fabrication ensured superior quality control over welding and geometry, unhindered by adverse weather at the construction site. These massive segments were then shipped to the bay and lifted into place by large floating cranes. This “prefabricate and assemble” approach dramatically reduced the on-site construction time and minimized the environmental impact on the bay’s ecosystem.
In summary, the steel box girder was the only logical choice that could simultaneously satisfy the requirements for a long span, typhoon resistance, durability in a salt-laden environment, and rapid construction—a testament to its status as the backbone of modern bridge engineering.
5. Future Horizons: Application Prospects & The Great Wall Vision
5.1 The Future of Steel Box Girders:
The application of steel box girders is poised for continued growth and innovation. Key trends include:
Adoption of Higher-Strength Steels: The development and use of steels with higher yield strengths (e.g., Q420, Q500) will allow for even longer spans and lighter structures, pushing the boundaries of what is possible.
Digitalization and Smart Fabrication: The integration of Building Information Modeling (BIM) and digital twins will streamline the design, fabrication, and construction process. Robotic welding and automated NDT will further enhance quality and efficiency.
Focus on Life-Cycle Cost and Sustainability: The focus is shifting from initial cost to the total life-cycle cost. The durability, low maintenance needs, and eventual recyclability of steel make box girders an increasingly sustainable choice. Smart monitoring systems embedded in bridges will provide real-time data on structural health, enabling predictive maintenance.
Global Expansion into New Markets: As emerging economies ramp up their infrastructure development, the demand for the technical and economic solutions offered by steel box girders will surge, particularly in regions with challenging geographies.
5.2 Zhenjiang Great Wall Heavy Industry’s Development Vision:
Having proven its capabilities on landmark projects like the Xuanmen Bay Bridge, Zhenjiang Great Wall Heavy Industry is looking toward a future defined by leadership and innovation. The company’s vision extends beyond being a mere fabricator; it aims to be a total solutions provider and a global leader in advanced steel structures.
Its strategic vision encompasses:
Technological Leadership: Continuous investment in research and development to master new techniques, such as designing for ultra-long spans and developing even more resilient corrosion-protection systems for the most aggressive environments.
Intelligent Manufacturing: Pioneering the “Industry 4.0″ transformation within its plants, leveraging big data, IoT sensors, and AI to optimize every stage of the production process, from raw material to finished girder segment.
Global Reach: Actively pursuing and competing in the international marketplace, aiming to bring its expertise and the “Great Wall” standard of quality to infrastructure projects worldwide. The company envisions its steel box girders spanning not only the bays of China but also the straits, rivers, and valleys of the globe.
Sustainable Development: Aligning its operations with global sustainability goals by optimizing material usage, reducing waste, and promoting the use of steel—a fully recyclable material—as the sustainable choice for modern infrastructure.
The Yuhuan Xuanmen Bay Bridge is more than a transportation link; it is a symbol of progress and a showcase of modern engineering prowess. Its successful realization was made possible by the synergistic partnership between visionary project owners and highly capable manufacturers like Zhenjiang Great Wall Heavy Industry Technology Co., Ltd. The steel box girder, with its unparalleled combination of strength, lightness, and durability, proved to be the ideal technological solution for the formidable challenges of Xuanmen Bay.
As the world continues to build and connect, the demand for such advanced engineering solutions will only grow. The trajectory of steel box girder technology, coupled with the ambitious vision of companies like Zhenjiang Great Wall Heavy Industry, points toward a future where even more breathtaking and resilient structures will be built, forging the coastal arteries and continental connectors of tomorrow. This project stands as a powerful case study of how Chinese manufacturing and engineering excellence are collectively shaping the infrastructure landscape, both at home and abroad.
Post time: Oct-17-2025
